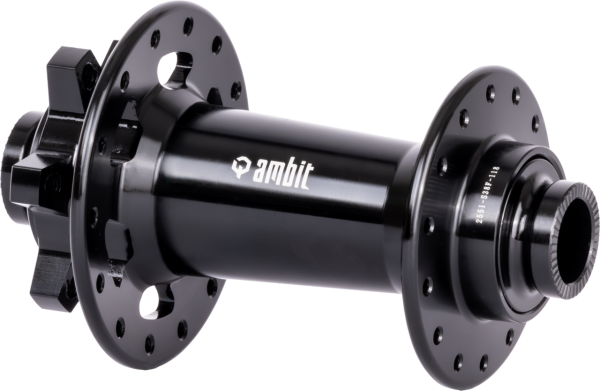

Hub Realm Boost
- Order number: 706000019
Tech Specs
The Hub Realm Boost
The new Ambit Enduro hubs set new standards in stability, efficiency, and versatility.
Crafted from high-strength 7075 aluminum, they feature a proprietary hub shell design and optimized flange angle for maximum stiffness and precise power transfer.
- Premium, ultra-strong 7075 aluminum alloy
- Proprietary Ambit hub shape / Optimized flange angle: flange geometry directly influences spoke tension and load distribution - Optimized angles and a unique shape ensure more even load transfer, increased lateral stiffness, and greater wheel durability
- Spoke holes: 28 front, 32 rear
- Boost spacing: 15 × 110 mm front, 12 × 148 mm rear
- Brake interface: 6-bolt
- Freehub options: XD or Microspline
- Points of Engagement (P.O.E.):
612 POE: Very small engagement angle (only 0.59°). Fast and direct power transfer for a very precise pedaling feel. Ideal for technical uphills and tight corners that require precise crank movements.
102 POE: Larger engagement angle (3.53°) and thus slightly more free play in the freewheel. Ideal for rough terrain, less technical uphill sections, and riders who want to work a little more
with the crank.
- Cross-compatible freehubs: one rear hub, two freehub variants – choose 102 P.O.E. for lightweight performance or 612 P.O.E. for extreme conditions
- Finish: hi-polished, black anodized
Crafted from high-strength 7075 aluminum, they feature a proprietary hub shell design and optimized flange angle for maximum stiffness and precise power transfer.
- Premium, ultra-strong 7075 aluminum alloy
- Proprietary Ambit hub shape / Optimized flange angle: flange geometry directly influences spoke tension and load distribution - Optimized angles and a unique shape ensure more even load transfer, increased lateral stiffness, and greater wheel durability
- Spoke holes: 28 front, 32 rear
- Boost spacing: 15 × 110 mm front, 12 × 148 mm rear
- Brake interface: 6-bolt
- Freehub options: XD or Microspline
- Points of Engagement (P.O.E.):
612 POE: Very small engagement angle (only 0.59°). Fast and direct power transfer for a very precise pedaling feel. Ideal for technical uphills and tight corners that require precise crank movements.
102 POE: Larger engagement angle (3.53°) and thus slightly more free play in the freewheel. Ideal for rough terrain, less technical uphill sections, and riders who want to work a little more
with the crank.
- Cross-compatible freehubs: one rear hub, two freehub variants – choose 102 P.O.E. for lightweight performance or 612 P.O.E. for extreme conditions
- Finish: hi-polished, black anodized
Wheel Rear, Front Axle 12x148 mm, 15x110 mm Points of Engagement (P.O.E.) 102, 612, n/a Axis Options n/a Hole Count 28, 32 Freewheel Microspline, XD, n/a Weight n/a Color black Version n/a
Features
Optimized Flange Angle
Optimized Flange Angle
The hub features an optimized geometry and flange angle to reduce spoke failure.
Selectable Engagement System
Selectable Engagement System
The engagement can be configured depending on the intended use:
612 POE (0.6°) – fast engagement:
Provides very direct response. Suitable for technical climbs, frequent accelerations from low speeds, and race applications where immediate power transfer is required. Enables near-continuous torque transmission.
102 POE (3.5°) – moderate engagement:
Offers a smoother, less reactive ride feel. Well suited for high-speed terrain, rough trails, or bike park use where a consistent drivetrain response is preferred. Reduces torque feedback into the suspension system while maintaining precise load transfer.
612 POE (0.6°) – fast engagement:
Provides very direct response. Suitable for technical climbs, frequent accelerations from low speeds, and race applications where immediate power transfer is required. Enables near-continuous torque transmission.
102 POE (3.5°) – moderate engagement:
Offers a smoother, less reactive ride feel. Well suited for high-speed terrain, rough trails, or bike park use where a consistent drivetrain response is preferred. Reduces torque feedback into the suspension system while maintaining precise load transfer.
