Wheels Realm DH

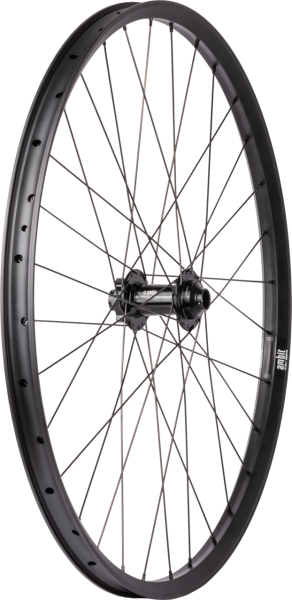

The Realm Downhill wheelset is specifically designed for tough downhill riding, challenging bike park trails, and modern gravity bikes.
The rim, hub, and spoke pattern are optimally tuned for maximum stability, direct power transfer, and high reliability—even under heavy loads and on e-MTBs.

The 30 mm-wide rim provides secure tire support and ensures precise control on fast, rough trails. The wide rim flange increases puncture resistance, while the flat rim profile on the front (18.5 mm) provides additional cushioning and greater comfort. The concave contact surface of the spoke nipples reduces localized stress and contributes to the wheel’s durability.

The CNC-machined Downhill hubs, made of 7075 aluminum, are designed for modern DH bikes and deliver rugged performance for the toughest conditions.

102 POE: The 3.53° engagement angle provides slightly more free play in the freehub. This is ideal for rough terrain and fast descents.
The hubs are specifically tailored to modern downhill standards: 20 x 110 mm Super Boost at the front and 12 x 157 mm Super Boost at the rear.

- Material: AL6069-T6 single-wall profile (rim), 7075 (hub shell)
- Welded
- Tubeless-ready
- Rim inner width: 30 mm, hooks: 4 mm and 4.5 mm
- Hub: Ambit Realm with 20 x 110 mm (front) / 12 x 157 mm (rear) Super Boost
- Brake disc mount: 6-bolt
- Spoke pattern: 3-cross
- Maximum total weight: 120 kg
- Also suitable for e-MTBs
